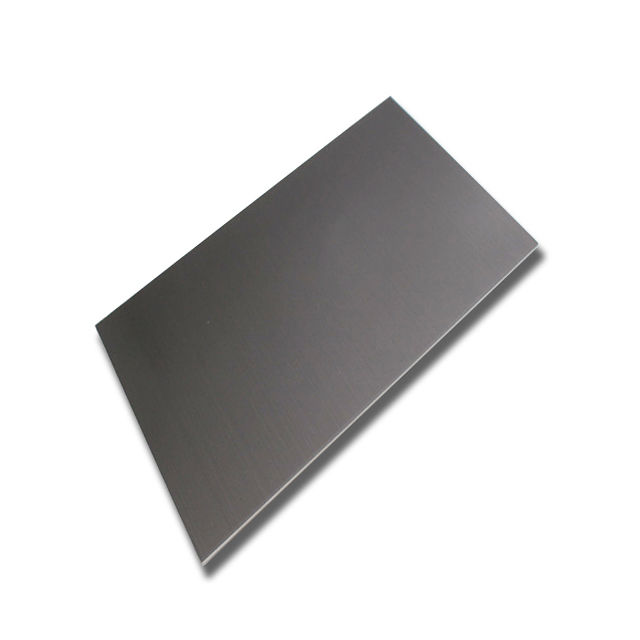

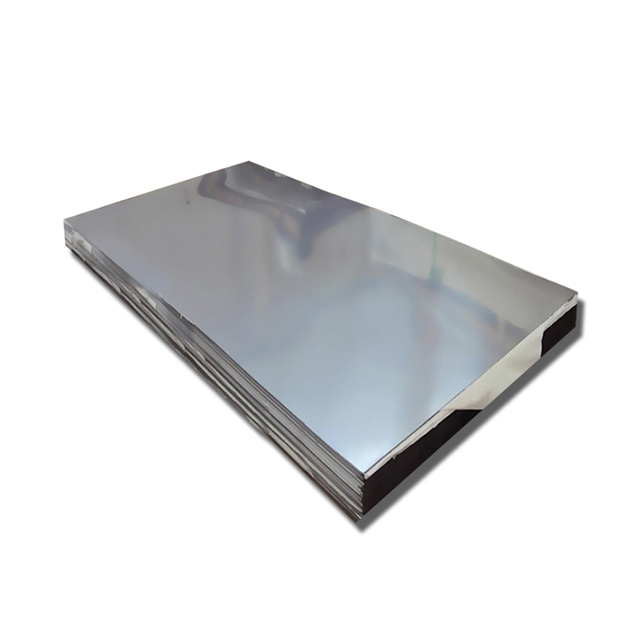

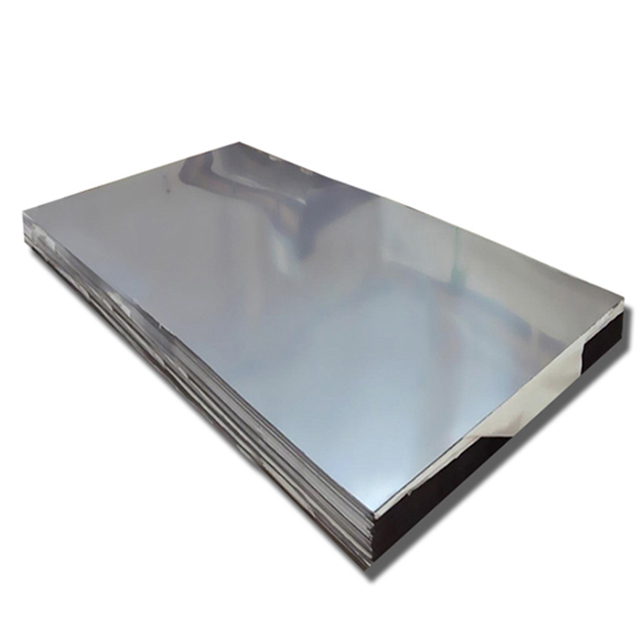

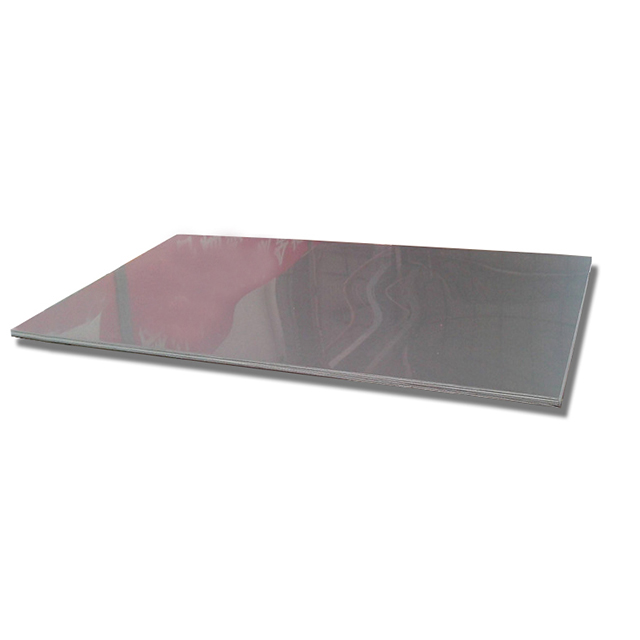

Galvanized Steel Sheet

PRODUCT TYPE

Galvanized steel coils/sheets/strips

PRODUCT STANDARD

AISI; ASTM;BS;DIN;GB;JIS

PRODUCT MATERIAL

SGCC; SGCH;DX51D;DX52D;DX53D;S350GD etc.

PRODUCT THICKNESS

0.12-4.0MM

product inquiry Custom Galvanized Steel Sheet sizes available upon request.

PRODUCT INQUIRY

Give us a few details about yourself and the demand requirements of products, we will reply you as soon as possible.

Product Description Images & Video Applications Our Advantage

Thickness	0.105- 4MM
Width	600 - 1250MM
Length	As require
Zinc Coating	Z30 - 600g/㎡
ID of Coil	508/610MM
Surface Structure	Regular spangle,Minimum spangle, Zero spangle, Big spangle
HRB	Soft Hard (＜60)，Medium Hard (60-85), Full Hard (85-95)
Surface Treatment	Oiled (O), Chromium (C),Phosphating (P), Spinpass
Standard Seaworthy Export Packing	Dust-proof kraft sheet, iron packing, Angle protective, packing belt
Coil Weight	3-5 Tons
Standard	ASTM-A653; JIS G3302; EN10147;etc
Payment Terms	T/T, LC, Western Union, Paypal, O/A, DP
Regular Order	25 tons or one container, for less quantity, to contact with us for details.

Mechanical properties of galvanized steel
Usage	Grade	Yield strength(MPa)	Tensile strength(MPa)
Punching galvnaized steel	DC51D+Z	-	270-500
	DC52D+Z	140-300	270-420
	DC53D+Z	140-260	270-380
Structure galvanized steel	S280GD+Z	≥280	≥360
	S350GD+Z	≥350	≥420
	S550GD+Z	≥550	≥560

Qingdao Sino Steel Co., Ltd is mainly engaged in producing and exporting galvanized steel coil/sheet(GI), prepainted galvanized steel coil/sheet(PPGI), corrugated galvanized sheet and tinplate coil/sheet. Qingdao Sino Steel has also become the agent of hot rolled coil/sheet, cold rolled coil/sheet, I beam, angle steel and channel steel.
